It is possible to verify an Ethernet cable’s ability to carry an Ethernet signal by attaching a network cable tester to it. If the cable carries the signal, it signifies that all circuits are closed and that the wires and the cable are free of short circuits or other undesirable connections. If you’re looking for the most basic POE tester, all you’ll need is an electrical current source, something to measure the state of the cable with and something to link the two with, which is usually a piece of the cable itself.

Proper Ethernet Lines

Ethernet lines may be used to enable machines in a network to communicate with one other and so cooperate. An Ethernet cable has four sets of two wires each, for a total of eight wires. The wire pairs on the circuit must be joined in the correct order to allow current to flow.

A network cable tester can tell whether the cables are connected correctly. This approach can also identify an insulation fracture that creates crosstalk between two wires that shouldn’t be coupled. The tester may also tell you whether the cable has the right amount of resistance.

The Right Network

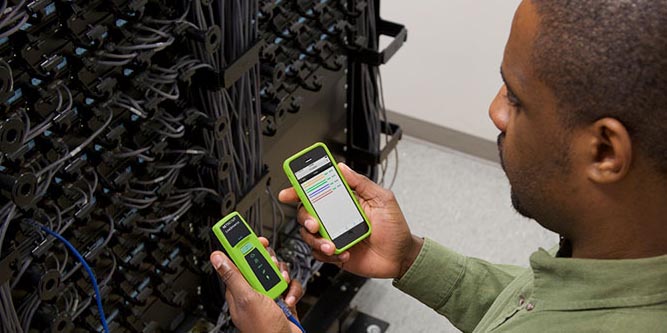

A network that isn’t working correctly is most likely due to a user error or other problem. It’s quite unlikely that a faulty cable is the blame. Before attaching a patch cable, it is more typical to use a rj45 cable tester to evaluate its functionality. First, a visual assessment of the cabling should be carried out in order to identify any obvious flaws. A network cable testing device may be utilized if everything seems to be in order.

As a network cable tester, you may use a simple device that just checks to see whether the cable is plugged in, or you can use a more advanced device to assist identify the problem at a more advanced level. Open circuits in network cables may be detected and the exact position of the break can be determined using network cable testers at a professional level. Additionally, some are able to assess the wire gauge used, while some can even generate their own signal to check for interference.

The Cable Tester’s specifications

The test circuit for cable testers may include, among other things, capacitors, diodes, and resistors. High potential (hipot) testing may be used to determine whether a product is in conformity with isolation criteria. One of these features is a trigger for the display or selection of a temporal domain reflectometer (TDR).

Specifications of a Cable Tester

According to published standards from organisations like the American National Standards Institute (ANSI), the Telecommunications Industry Association TIA, National Fire Protection Association (NFPA), the Canadian Standards Association (CSA), and International Standards Organization (ISO), testers for cabling are used to verify cabling in accordance with published standards (ISO).

Using a Cable Tester in this manner

Troubleshooting connection difficulties and verifying whether or not an existing link is capable of supporting particular network speeds and technologies are possible using cable testers. Their power exceeds verification tools, but they do not perform all tests necessary for certification.
